Adding Properties For File Attachments

An example of adding a property to the Biskit of type Project to hold an file attachment.

1.Go to Admin->Bakery,

2.Click the + next to Biskit Def to open the Biskit Tree

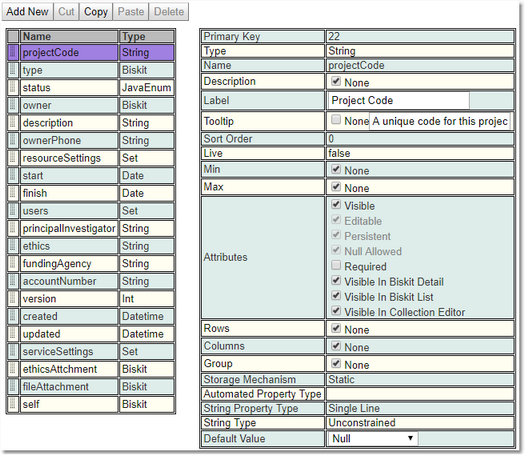

3.Select the Biskit to add properties to (in this case Base Project then Project)

4.Press the Edit button to get the Biskit into edit mode

5.Press the Add New button to add a new property.

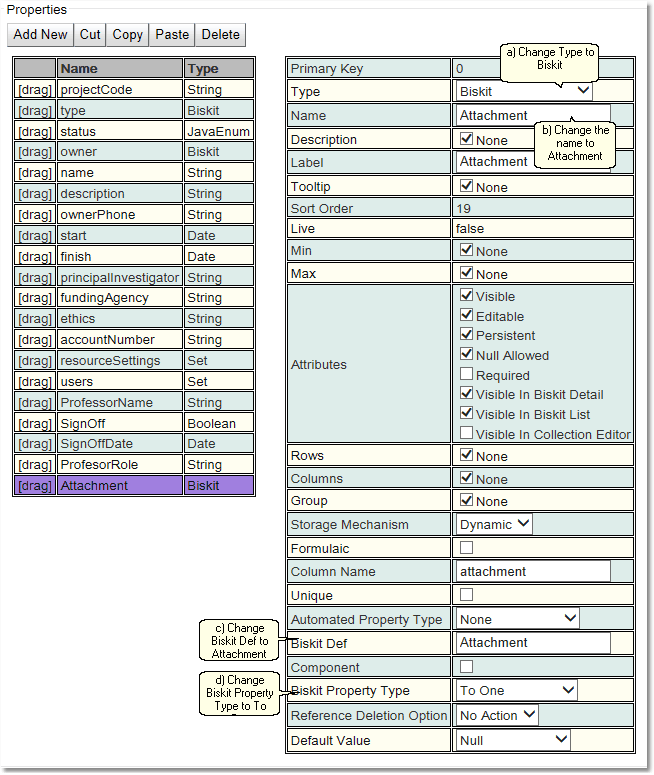

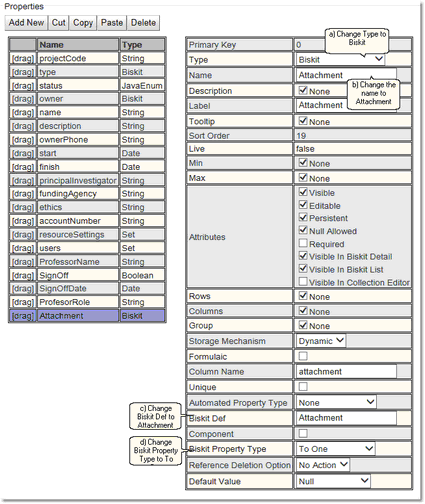

6.Update the meta properties of the property.

a)Change Type to Biskit.

b)Give the property a name, in this case Attachment.

c)Change Biskit Def to Attachment

d)Change Biskit Property Type to To One.

7.Press the Save button.

8.If there are no errors then update the database:

a)Press Update DB Schema to implement changes in the DB, a pop up will appear defining the database changes to be implemented.

9. Press the Apply Changes button to update the database. There will be a response saying how many rows affected. Press OK to finish.

a)Press Validate Biskits button to check the database Biskits.

b)Press Reload Database Configuration, to load the new database into Exprodo SDM

c)Refresh the browser
